2022 Stratus Construction

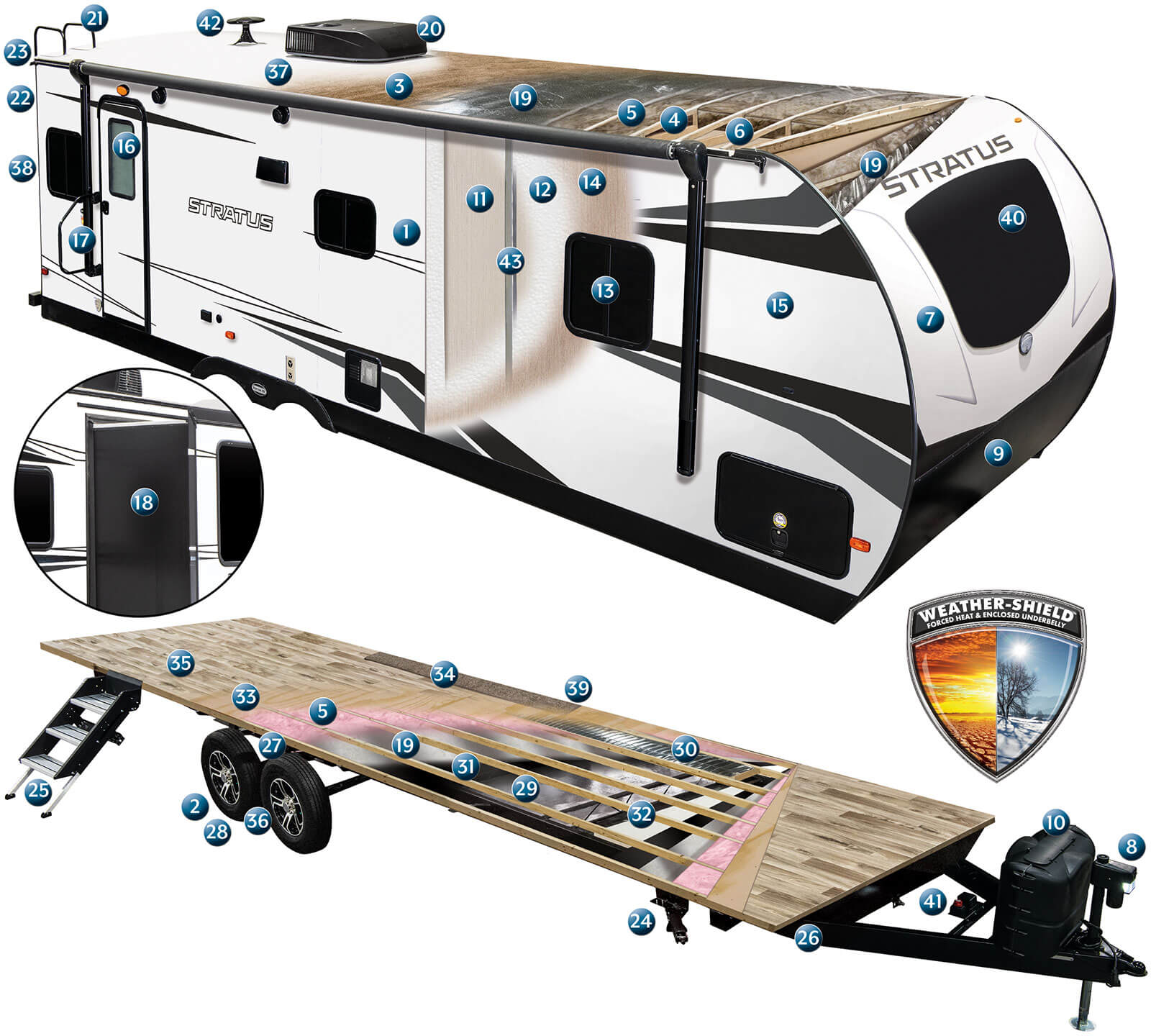

2022 Venture RV Stratus Travel Trailer Cutaway

Cutaway

  1. Azdel RV composite panels are used in place of luan plywood, thus providing less weight, better insulating properties and sound deadening, water and moisture resistance, and no formaldehyde or other toxic chemicals used
  2. LionsHead 14" or 15" nitrogen-filled radial tires (VBF) – first year “No Excuses Warranty”, 2-year complimentary roadside assistance, 5-year warranty on radial ST tires and lifetime structural warranty on all wheels
  3. 3/8" Walkable roof material
  4. 4 3/8" Truss rafter 16" OC
  5. R-14* Residential fiberglass insulation
  6. Vinyl interior ceiling panel
  7. Aerodynamic front profile
  8. Hitch light
  9. Carbon fiber pattern rock guard
  10. Easy-view LP tank cover (2-20LB tanks)
  11. Vinyl decorative interior board
  12. Expanded R-7* polystyrene
  13. Tinted safety glass windows
  14. Luan structure board
  15. High-gloss exterior fiberglass (available in red, white, blue, gray)
  16. Radius exterior door w/screen-shot screen door
  17. Large assist grab handle
  18. Carbon fiber pattern accented slideout ends
  19. 360-Degree radiant foil barrier
  20. 13.5K A/C standard – 15K A/C opt.
  21. Ladder
  22. 3 1/2" Downspout
  23. Rain gutter
  24. Secure Stance angled jack w/blue LED lights
  25. Flip-up aluminum Trek step
  26. NXG huck-bolted frame
  27. Wide Trek axles
  28. High-polished aluminum rims
  29. Undershield® insulated, heated & enclosed underbelly
  30. Residential duct heating with RV Airflow System adds 38% more A/C airflow
  31. Darco moisture barrier
  32. 2" x 3" Floor joist 16" OC
  33. 5/8" Tongue & groove plywood
  34. Residential carpet
  35. Beauflor linoleum w/7-year limited warranty
  36. Self-adjusting brakes
  37. Prewire for solar
  38. Prewire for backup camera
  39. Enclosed gate valves
  40. Automotive aerodynamic front window
  41. Battery disconnect switch
  42. Omni-directional antenna w/WIFI prep
  43. Aluminum-framed sidewalls
  44. **Campfire Café exterior kitchen includes sink, griddle, fridge (VBF)

*Calculated R-Value

Azdel Composite Panels

Azdel RV Composite Panels Onboard
  • Azdel Composite Panels are 50 Percent Lighter than Wood

    50% Lighter than Wood

  • Azdel Composite Panels with No Mold, Mildew, Rotting or Warping

    No Mold, Mildew, Rotting or Warping

  • Azdel Composite Panels are Unaffected by Temperature and Humidity Changes

    Unaffected by Temperature & Humidity Changes

  • Azdel Composite Panels offer Superior Thermal Insulation

    Superior Thermal Insulation

  • Azdel Composite Panels offer Superior Sound Absorption

    Superior Sound Absorption

  • Azdel Composite Panels with Low VOCs and No Formaldehyde

    Low VOCs; No Formaldehyde

NXG Frame

  • NXG Frame Logo

    The NXG Frame is a superior quality, highly engineered frame that provides customers with a strong, lightweight, consistent foundation on which to build.

    nxg lightweight travel trailer frame
  • ELIMINATES:
    • Frame failures due to sub-standard steel
    • Construction issues caused by improperly placed components
    • Uneven main rails - varying camber
    • Corrosion caused by incomplete coverage due to painting of stacked frame assemblies
    • Paint failures caused by inadequately washed components
  • KEY FEATURES:
    • Constructed with HSLA - High Strength Low Alloy Prime Steel with specifically controlled properties
    • CNC controlled rail fabrication allows placement of components precisely where the manufacturer wants them
    • Manual welding is minimized. Common components are robotically welded for consistent quality
    • All fastened components are joined with Huck® fasteners. Huck fasteners provide consistent clamp load
    • CNC controlled camber
    • Designed with flush floor slideouts. Ensuring no rise between slideout and main floor for easier movement throughout the unit

NXG Slide

  • NXG Slide Logo

    BAL has set the new standard in slide-out technology with the award winning ‘NXG SLIDE’ rack drive slide-out. The NXG SLIDE system provides an unmatched level of durability and precision that was not available in older generations of slide-out mechanisms. Due to the systems rigidity and tightness, a user should experience years of trouble-free performance. All components of the NXG SLIDE mechanism are individually coated with highly effective corrosion-resistant e-coat or plating for extended life of the slide-out drive. Required maintenance is limited to periodic cleaning and lubrication of the main drive arms of the system. For additional information regarding the NXG SLIDE or other BAL products, please visit www.norcoind.com/bal.

  • nxg travel trailer slideout system secure connections
    nxg travel trailer easy adjustment
    nxg travel trailer arched design
