Sonic SN190VRB

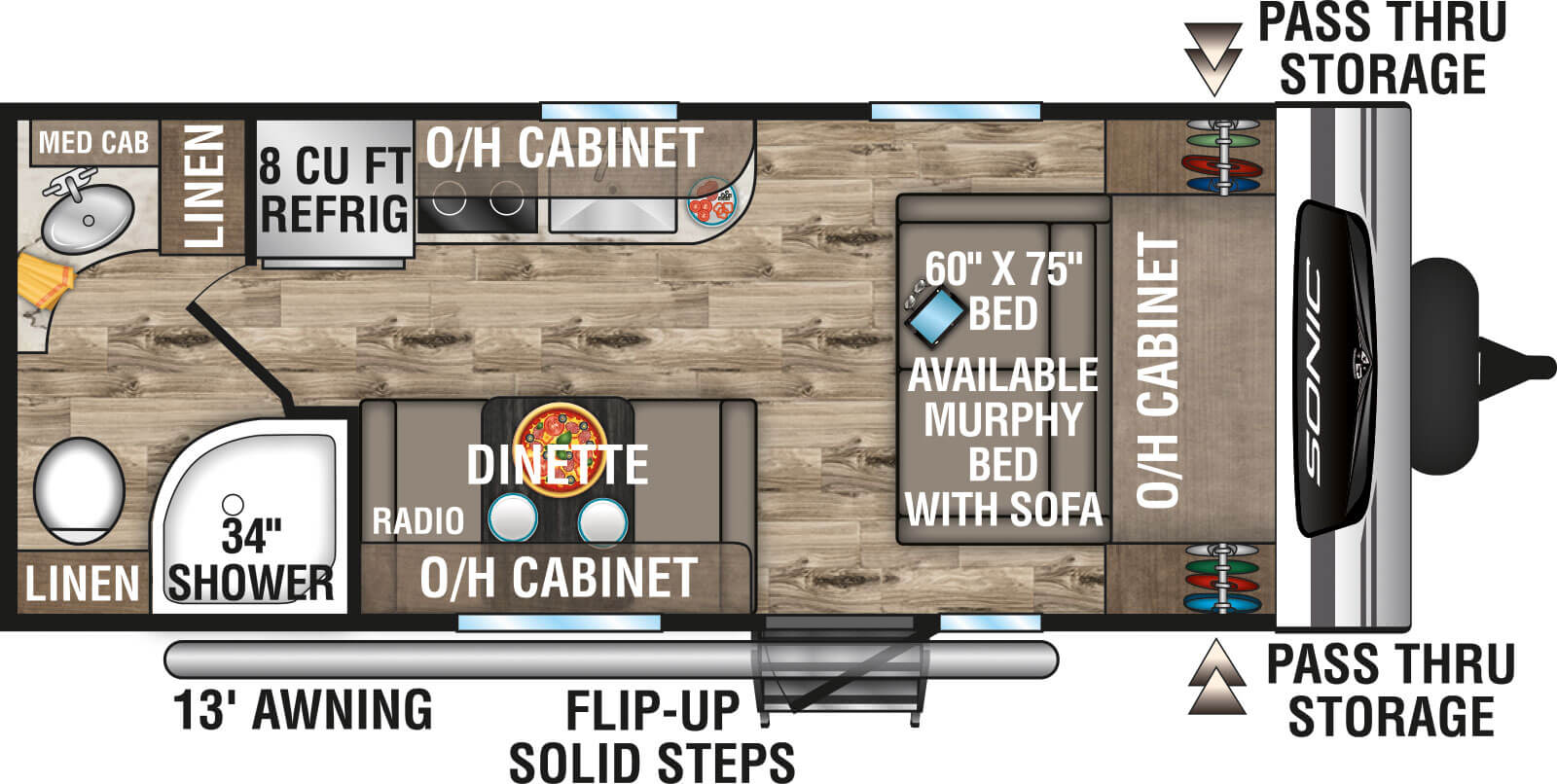

2020 Venture RV Sonic SN190VRB Travel Trailer Floorplan
UVW (Unloaded Vehicle Weight)* 3,770
Dry Hitch Weight* 350
Dry Axle Weight* 3,200
NCC (Net Carrying Capacity) 730
GVWR 4,500
Interior Height 82"
Exterior Height (with A/C) 10' 4"
Exterior Width 90"
Exterior Length 23' 2"
Refrigerator (Cubic Feet) 7
Water Heater Cap. (Gal. G/E w/DSI) 6
Fresh Water Cap. (Gal.) 38
Black Water Cap. (Gal.) 30
Gray Water Cap. (Gal.) 30
LP Gas Cap. (Lbs.) 40
Furnace BTUs (1,000s) 20
Tire Size 14"
Awning 13'

*This weight reflects the rolling average unit weight for each model. Your trailer weight will vary according to optional equipment.

2020 - Shown in Biscayne Décor

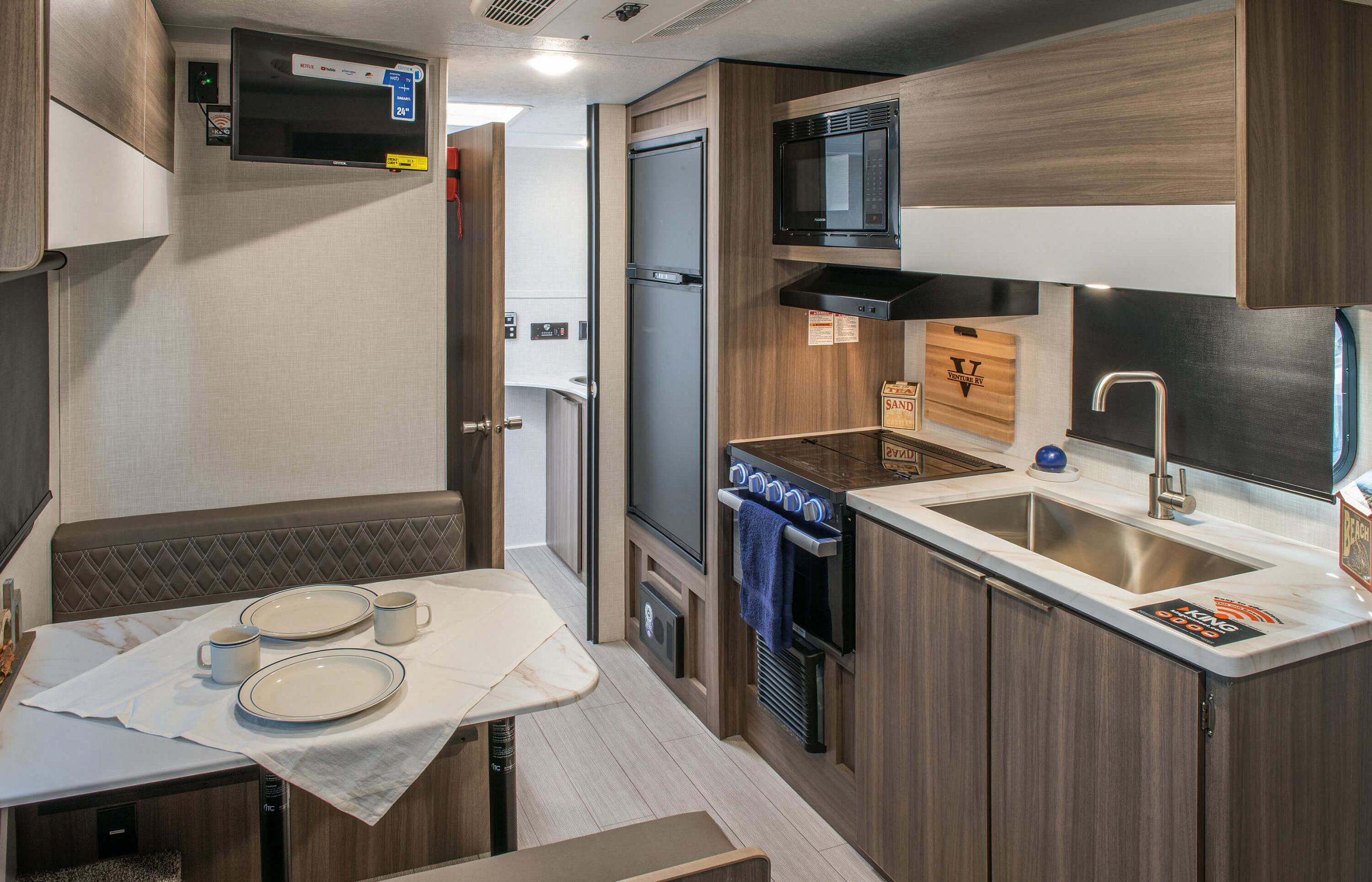

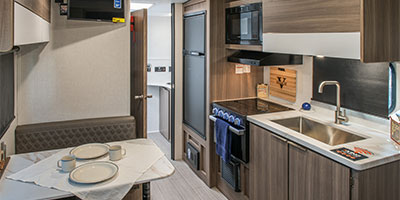

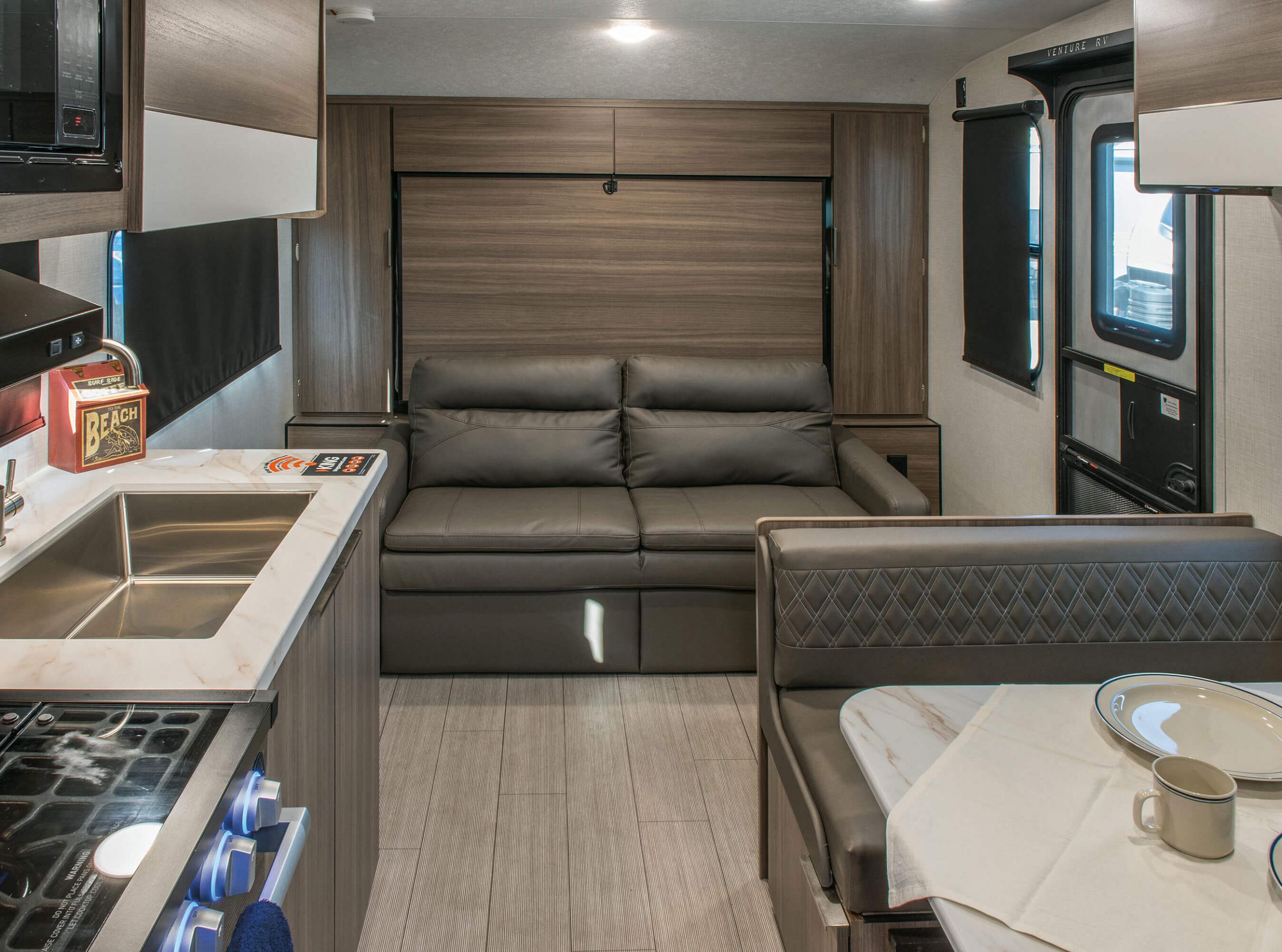

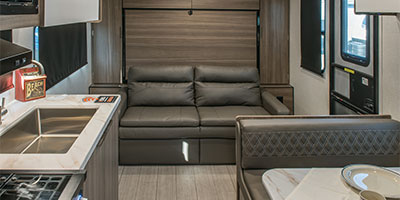

2020 Venture RV Sonic SN190VRB Travel Trailer Sofa 2020 Venture RV Sonic SN190VRB Travel Trailer Kitchen 2020 Venture RV Sonic SN190VRB Travel Trailer Bathroom 2020 Venture RV Sonic SN190VRB Travel Trailer Bathroom Sink

2020 - Exterior

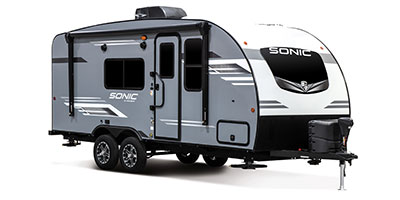

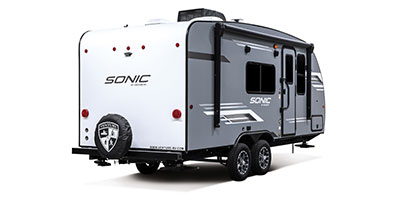

2020 Venture RV Sonic SN190VRB Travel Trailer Exterior Front 3-4 Door Side 2020 Venture RV Sonic SN190VRB Travel Trailer Exterior Rear 3-4 Door Side

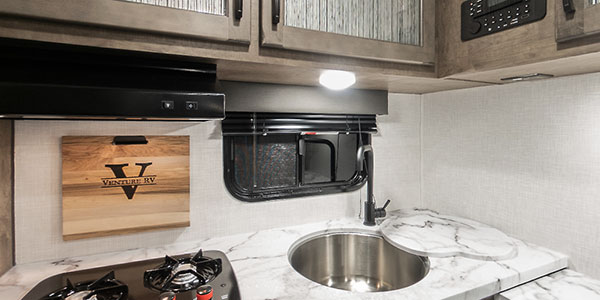

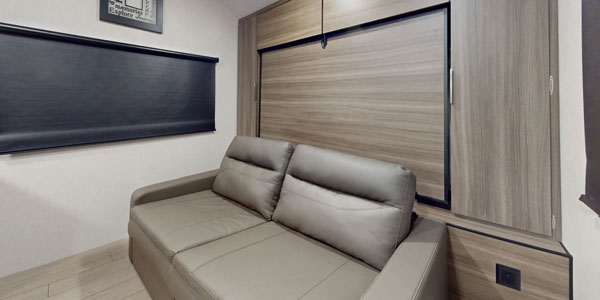

2019 - Interior 360

2019 - Shown in Granite Décor

2019 Venture RV Sonic SN190VRB Travel Trailer Muphy Bed Sofa 2019 Venture RV Sonic SN190VRB Travel Trailer Muphy Bed Sofa 2019 Venture RV Sonic SN190VRB Travel Trailer Kitchen 2019 Venture RV Sonic SN190VRB Travel Trailer Dinette 2019 Venture RV Sonic SN190VRB Travel Trailer Dinette Down 2019 Venture RV Sonic SN190VRB Travel Trailer Overhead Cabinet 2019 Venture RV Sonic SN190VRB Travel Trailer Refrigerator 2019 Venture RV Sonic SN190VRB Travel Trailer Bathroom

2019 - Exterior

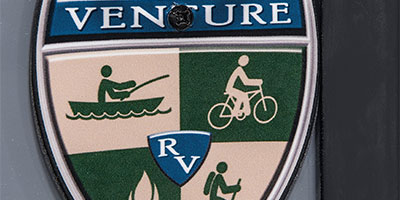

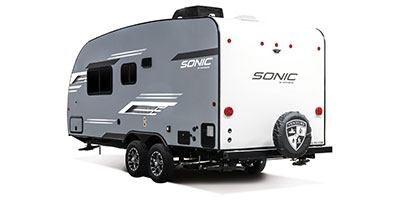

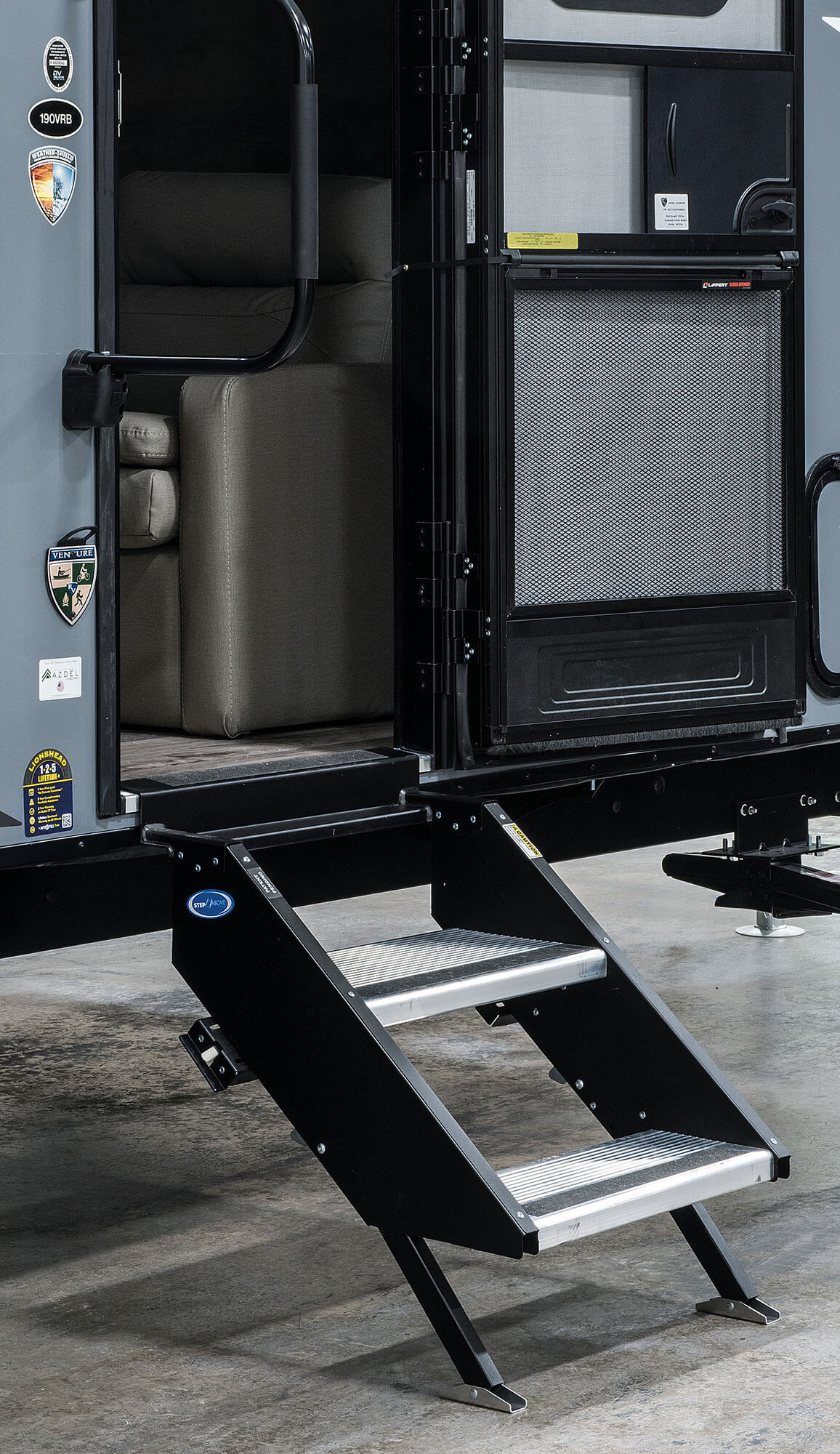

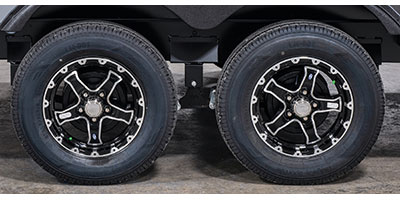

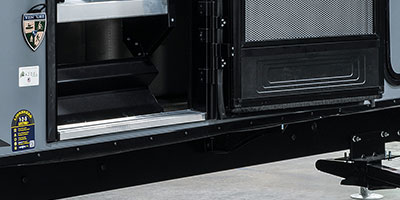

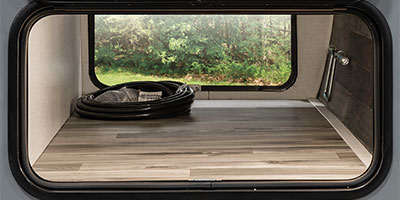

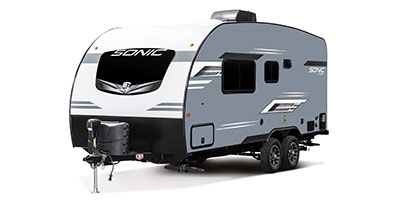

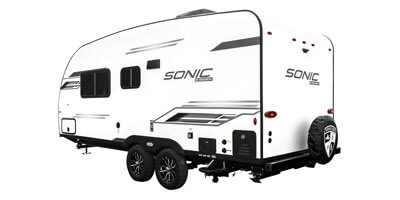

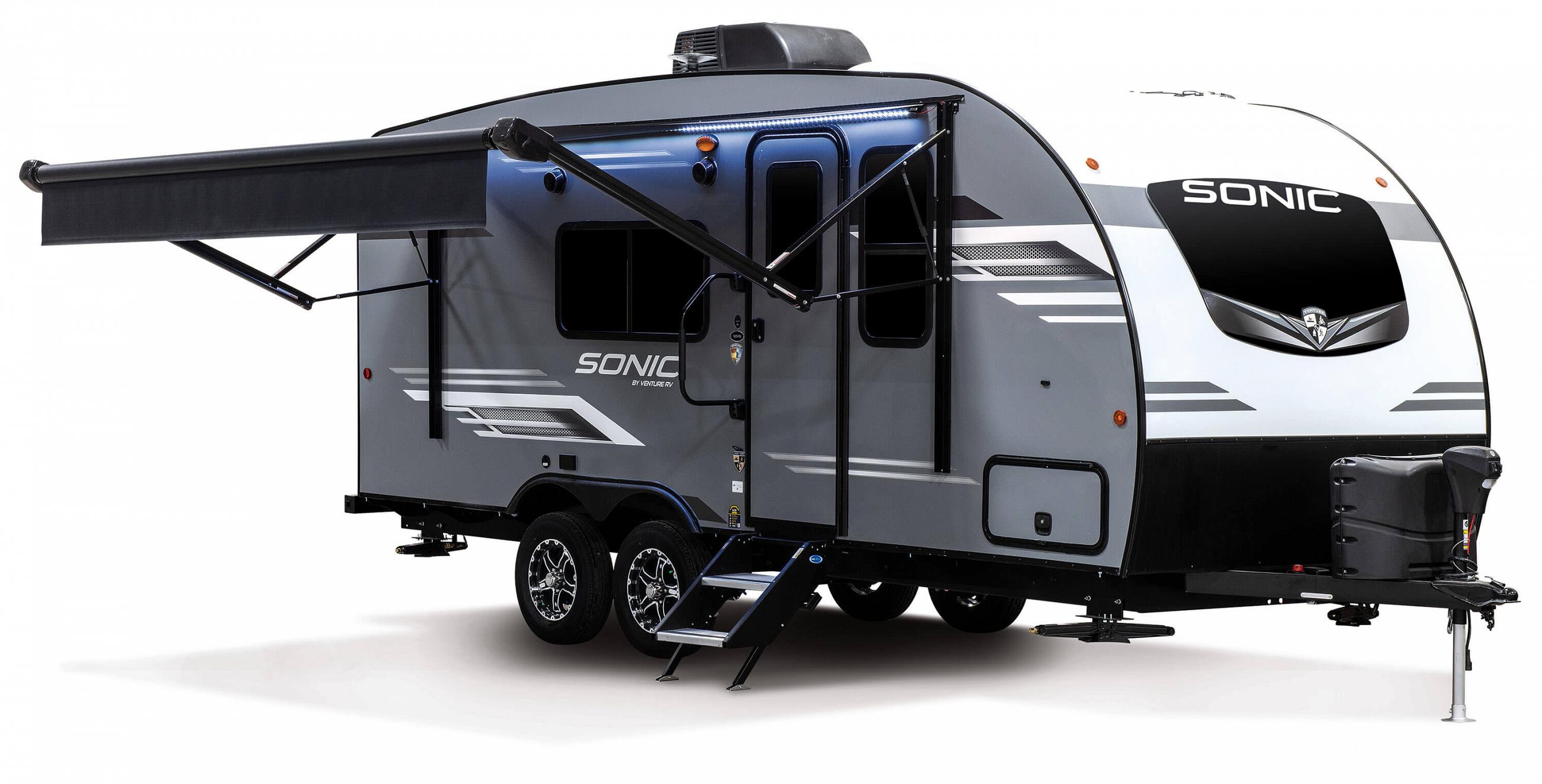

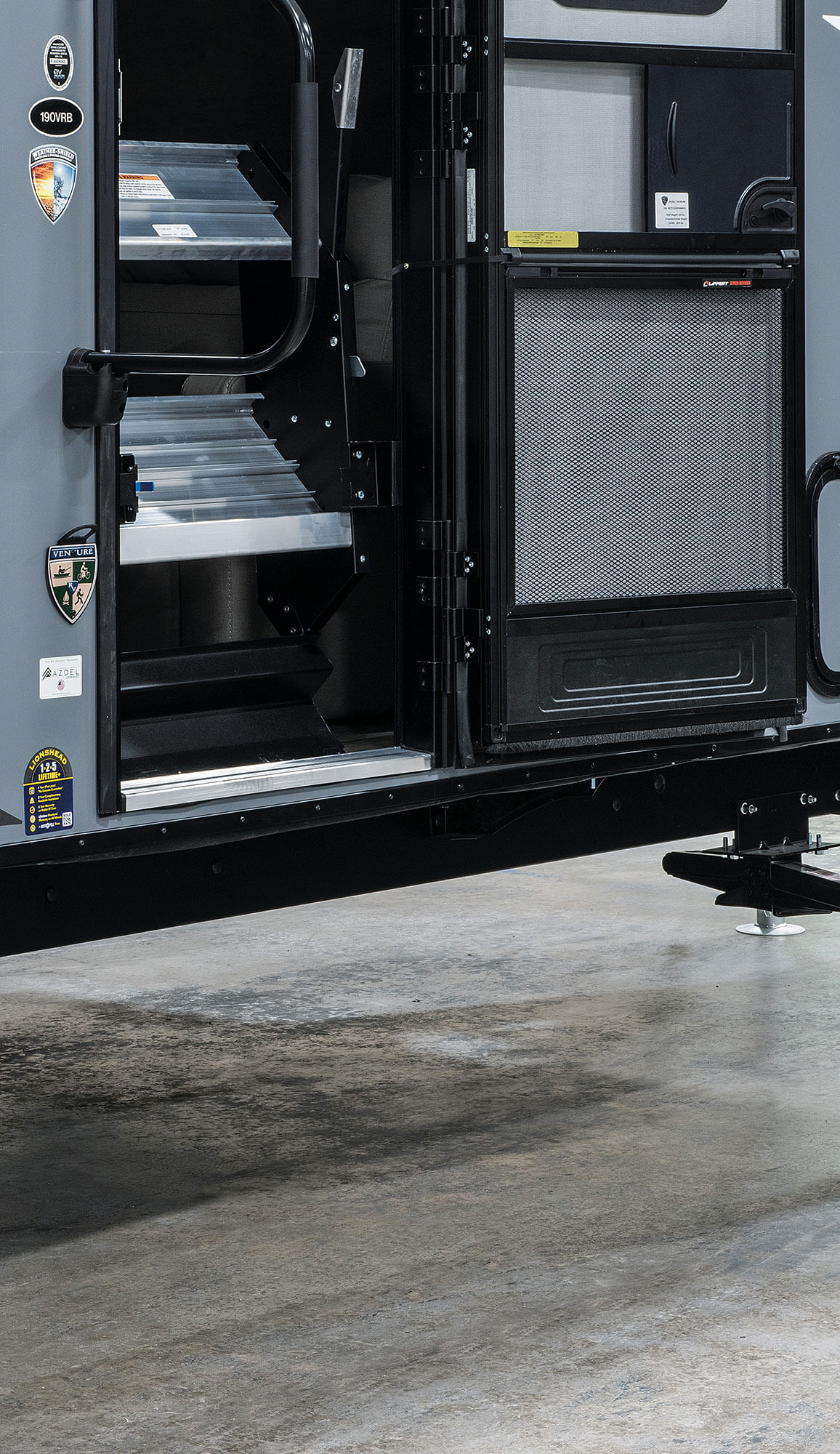

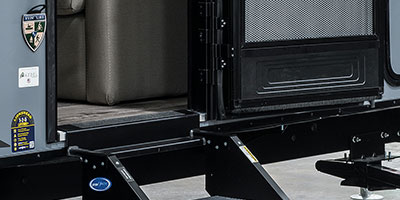

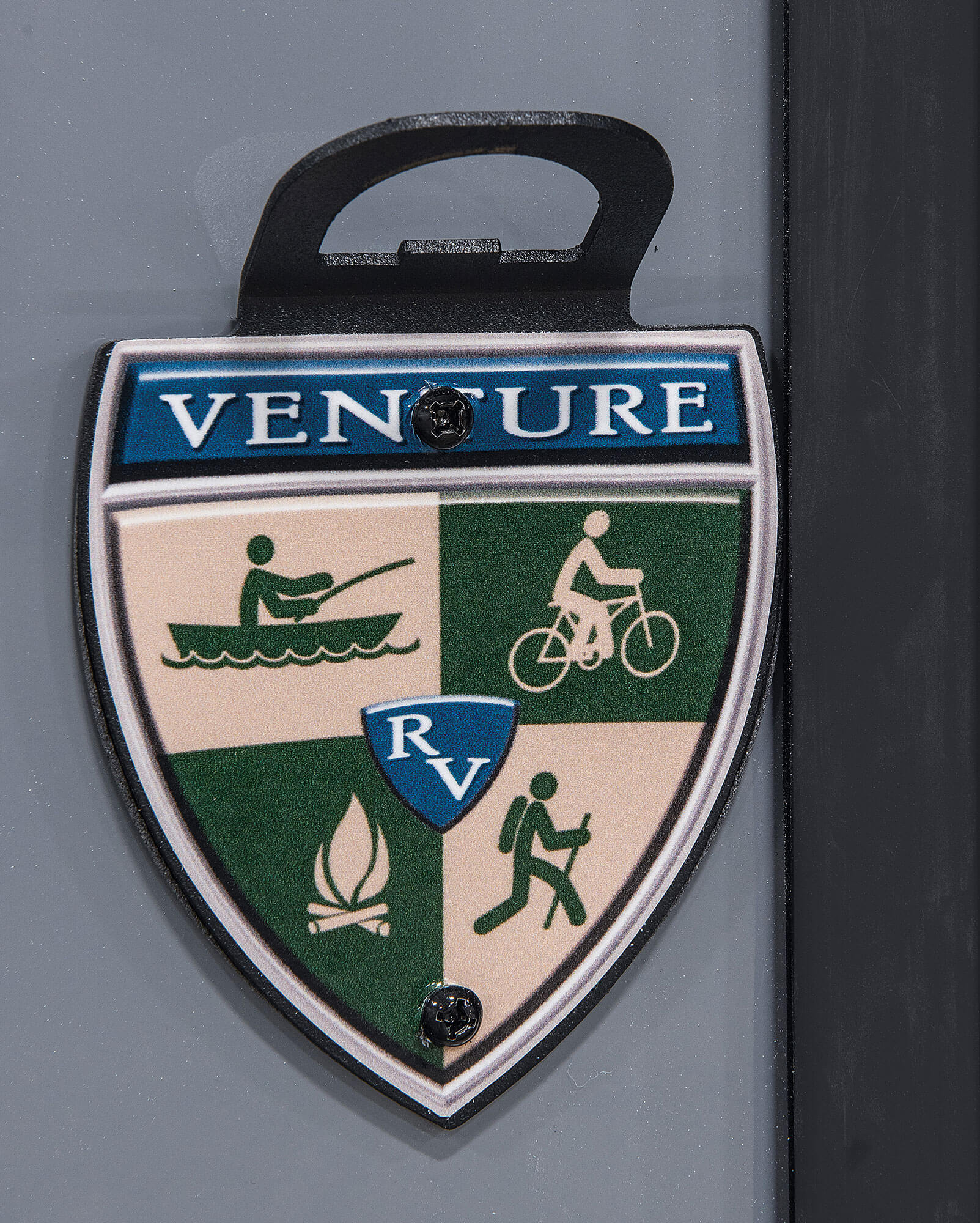

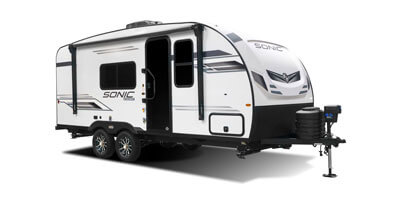

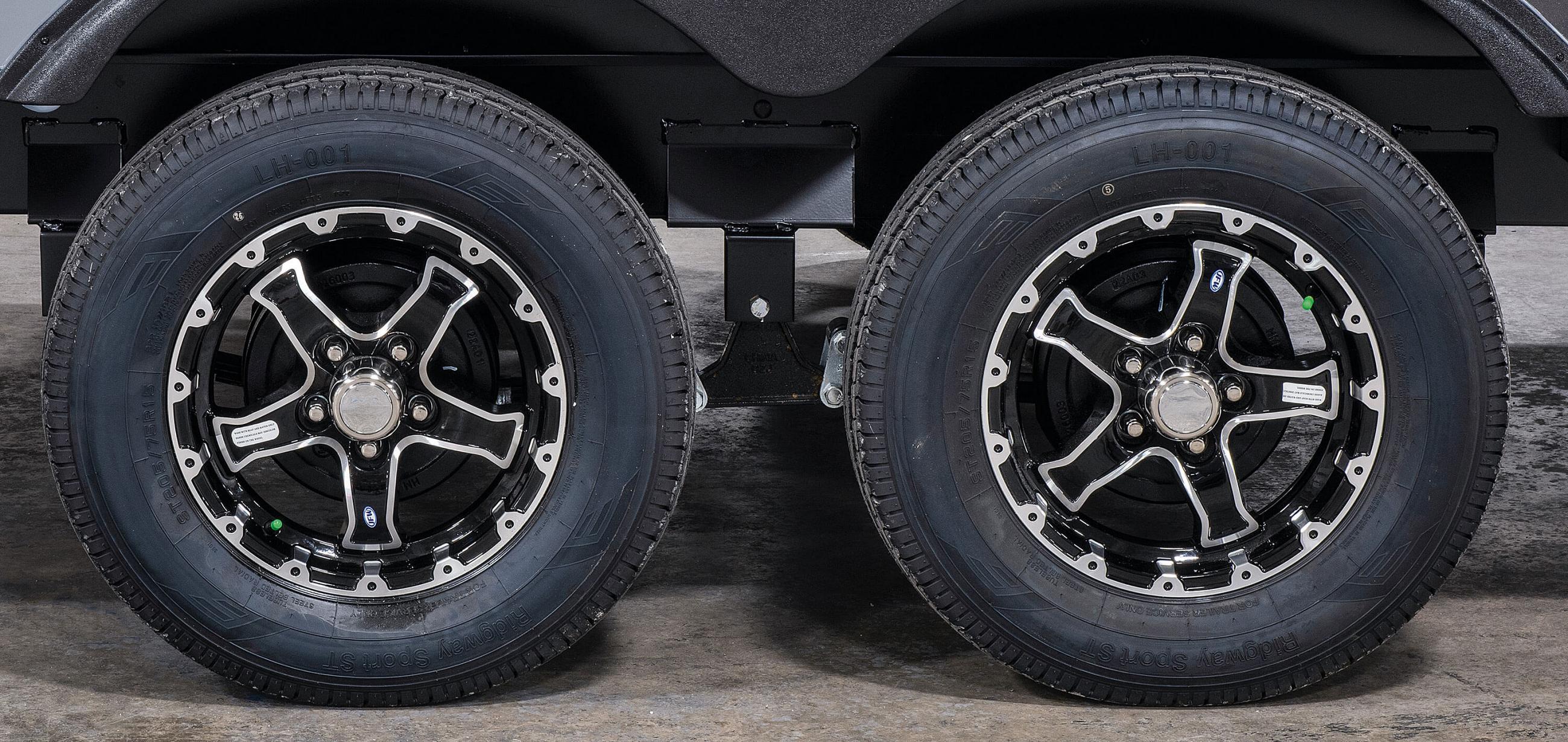

2019 Venture RV Sonic SN190VRB Travel Trailer Exterior Pass Through Storage 2019 Venture RV Sonic SN190VRB Travel Trailer Exterior Awning 2019 Venture RV Sonic SN190VRB Travel Trailer Exterior Bottle Opener 2019 Venture RV Sonic SN190VRB Travel Trailer Exterior Battery Disconnect 2019 Venture RV Sonic SN190VRB Travel Trailer Exterior Hitch Light 2019 Venture RV Sonic SN190VRB Travel Trailer Exterior Wheels 2019 Venture RV Sonic SN190VRB Travel Trailer Exterior Steps 2019 Venture RV Sonic SN190VRB Travel Trailer Exterior Steps 2019 Venture RV Sonic SN190VRB Travel Trailer Exterior Front 3-4 Door Side 2019 Venture RV Sonic SN190VRB Travel Trailer Exterior Front 3-4 Off Door Side 2019 Venture RV Sonic SN190VRB Travel Trailer Exterior Rear 3-4 Off Door Side 2019 Venture RV Sonic SN190VRB Travel Trailer Exterior Rear 3-4 Door Side
