2022 SportTrek Touring Edition Construction

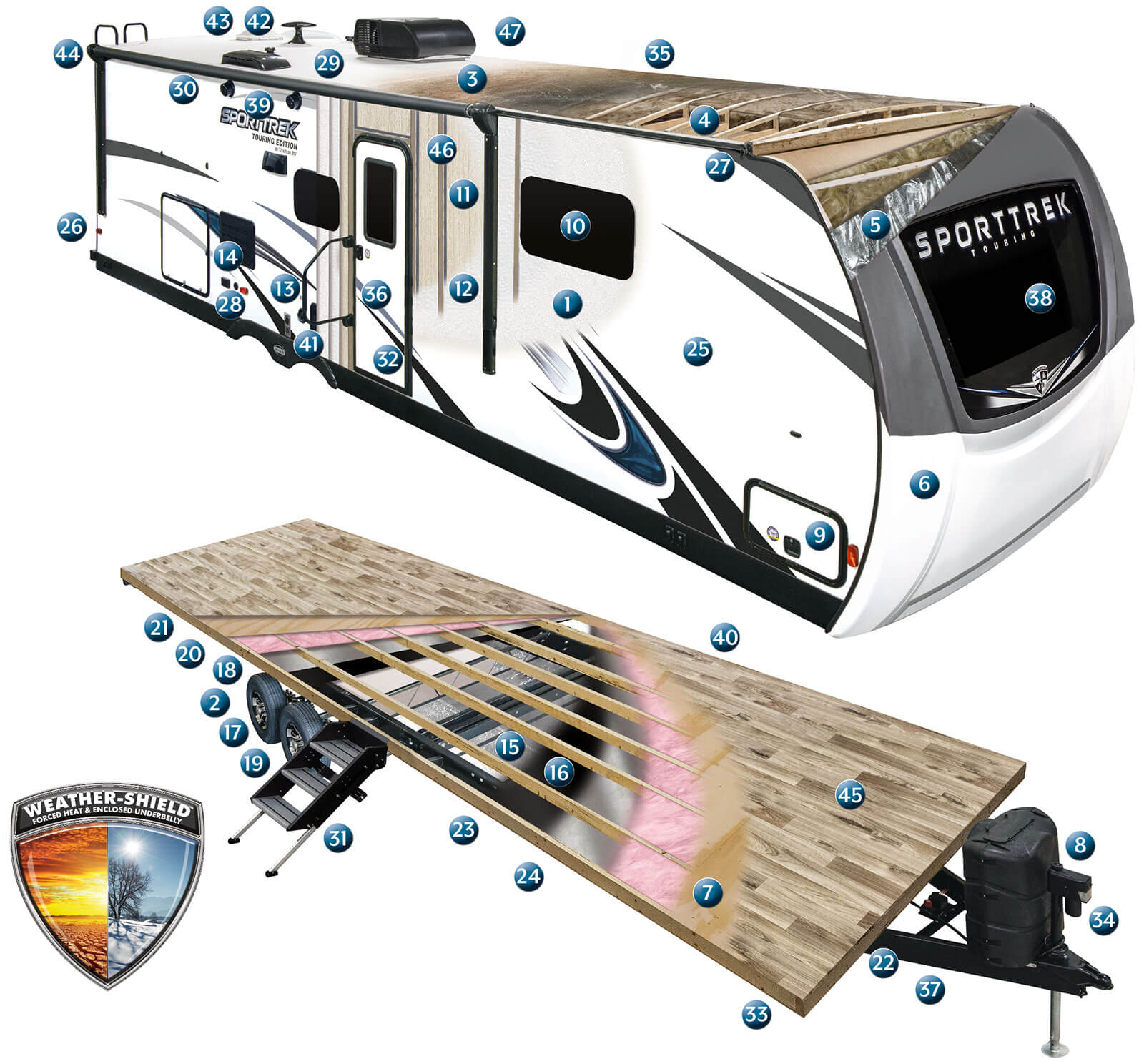

2022 Venture RV SportTrek Touring Edition Travel Trailer Cutaway

Cutaway

  1. Azdel RV composite panels are used in place of luan plywood, thus providing less weight, better insulating properties and sound deadening, water and moisture resistance, and no formaldehyde or other toxic chemicals used
  2. LionsHead 14" or 15" nitrogen-filled radial tires (VBF) – first year “No Excuses Warranty”, 2-year complimentary roadside assistance, 5-year warranty on radial ST tires and lifetime structural warranty on all wheels
  3. 3/8" Walkable roof decking
  4. 4 1/2" Truss rafters (16" OC)
  5. 360-Degree foil insulation
  6. Painted fiberglass aerodynamic front cap w/integrated LED lighting
  7. 5/8" Tongue & groove plywood decking
  8. (2) 30# LP tanks w/flip-up access lid
  9. Extra-large slam latch radius baggage doors w/magnetic catch
  10. Frameless tinted safety glass windows
  11. Luan decorative wallboard
  12. Expanded R-7* polystyrene insulation
  13. Large assist grab handle
  14. 110V Outlet (VBF)
  15. Darco® corrugated moisture barrier
  16. Forced-air-heated, enclosed & insulated underbelly
  17. LionsHead high-polished aluminum rims
  18. Auto-adjust brakes
  19. EZ Lube® axles
  20. Heavy-duty leaf springs
  21. Rack & pinion electric slide w/manual override & box tube slideout ram
  22. BAL huck-bolted frame
  23. 2" x 3" Floor joists (16" OC)
  24. Triple-sealed slideouts
  25. Arctic White high-gloss fiberglass exterior
  26. 2" Accessory hitch integrated into the frame
  27. Extra-long drip spouts
  28. Satellite & cable hookups (VBF)
  29. PVC seamless 1-piece roofing material w/lifetime limited warranty
  30. Power awnings(s) w/multi-directional LED light(s) (VBF)
  31. Fold-up solid Trek Step
  32. Screen Shot spring-loaded screen door
  33. Independent power stabilizer jacks (4)
  34. Power tongue jack w/light
  35. Guttering above slideout
  36. Friction hinge entry door
  37. Easy-access battery disconnect
  38. Tinted automotive front windshield
  39. Black marine-grade lighted exterior speakers
  40. Enclosed gate valves
  41. Venture RV bottle opener/doggie tiedown
  42. Omni-directional antenna w/King WIFI prep
  43. Prewired for solar
  44. Prewired for backup camera
  45. Beauflor linoleum w/7-year limited warranty
  46. Aluminum-framed sidewalls
  47. Residential duct heating A/C RV Airflow System produces 38% more airflow

*Calculated R-Value

Azdel Composite Panels

Azdel RV Composite Panels Onboard
  • Azdel Composite Panels are 50 Percent Lighter than Wood

    50% Lighter than Wood

  • Azdel Composite Panels with No Mold, Mildew, Rotting or Warping

    No Mold, Mildew, Rotting or Warping

  • Azdel Composite Panels are Unaffected by Temperature and Humidity Changes

    Unaffected by Temperature & Humidity Changes

  • Azdel Composite Panels offer Superior Thermal Insulation

    Superior Thermal Insulation

  • Azdel Composite Panels offer Superior Sound Absorption

    Superior Sound Absorption

  • Azdel Composite Panels with Low VOCs and No Formaldehyde

    Low VOCs; No Formaldehyde

NXG Frame

  • NXG Frame Logo

    The NXG Frame is a superior quality, highly engineered frame that provides customers with a strong, lightweight, consistent foundation on which to build.

    nxg lightweight travel trailer frame
  • ELIMINATES:
    • Frame failures due to sub-standard steel
    • Construction issues caused by improperly placed components
    • Uneven main rails - varying camber
    • Corrosion caused by incomplete coverage due to painting of stacked frame assemblies
    • Paint failures caused by inadequately washed components
  • KEY FEATURES:
    • Constructed with HSLA - High Strength Low Alloy Prime Steel with specifically controlled properties
    • CNC controlled rail fabrication allows placement of components precisely where the manufacturer wants them
    • Manual welding is minimized. Common components are robotically welded for consistent quality
    • All fastened components are joined with Huck® fasteners. Huck fasteners provide consistent clamp load
    • CNC controlled camber
    • Designed with flush floor slideouts. Ensuring no rise between slideout and main floor for easier movement throughout the unit

NXG Slide

  • NXG Slide Logo

    BAL has set the new standard in slide-out technology with the award winning ‘NXG SLIDE’ rack drive slide-out. The NXG SLIDE system provides an unmatched level of durability and precision that was not available in older generations of slide-out mechanisms. Due to the systems rigidity and tightness, a user should experience years of trouble-free performance. All components of the NXG SLIDE mechanism are individually coated with highly effective corrosion-resistant e-coat or plating for extended life of the slide-out drive. Required maintenance is limited to periodic cleaning and lubrication of the main drive arms of the system. For additional information regarding the NXG SLIDE or other BAL products, please visit www.norcoind.com/bal.

  • nxg travel trailer slideout system secure connections
    nxg travel trailer easy adjustment
    nxg travel trailer arched design
