Sonic Lite Construction

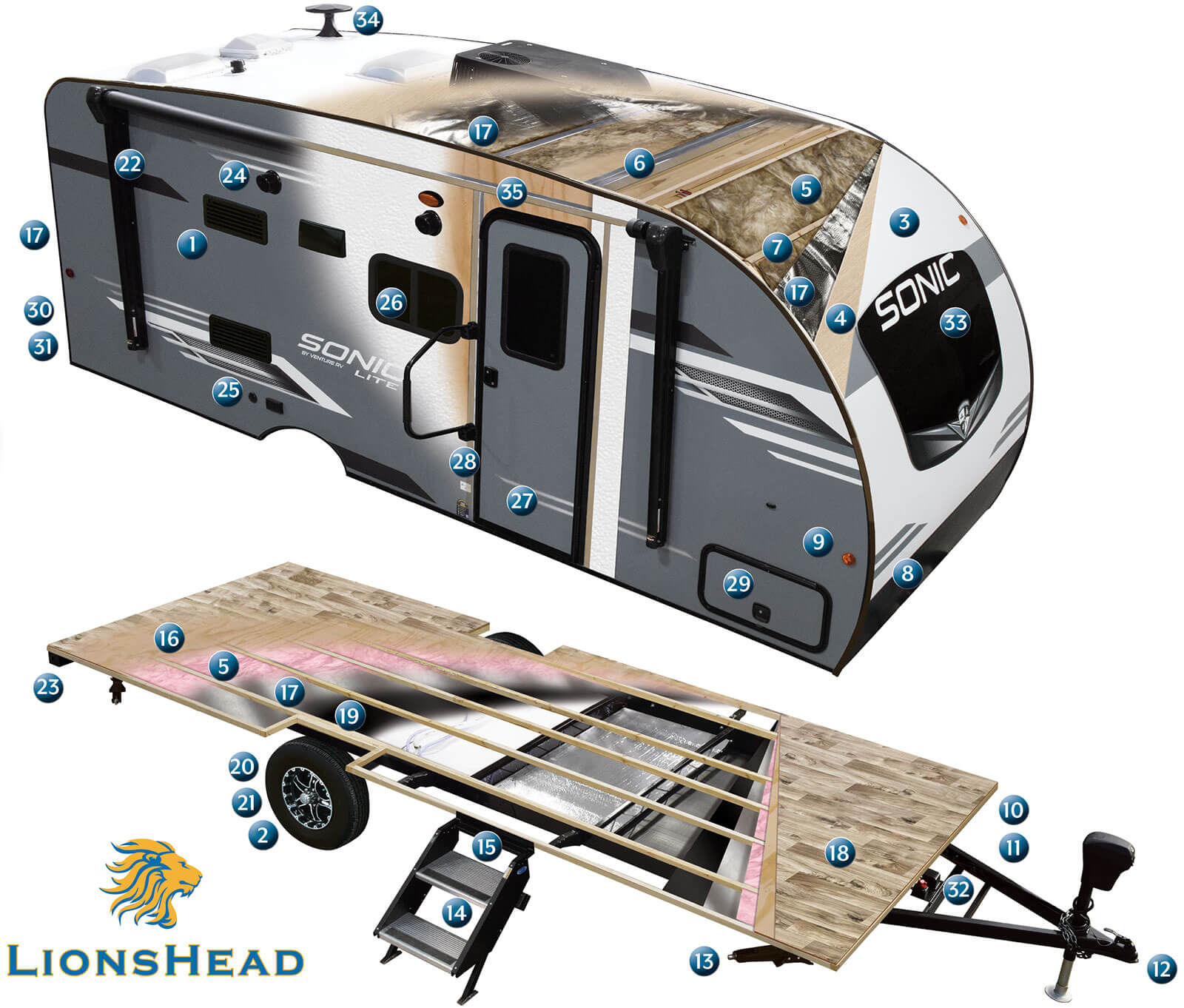

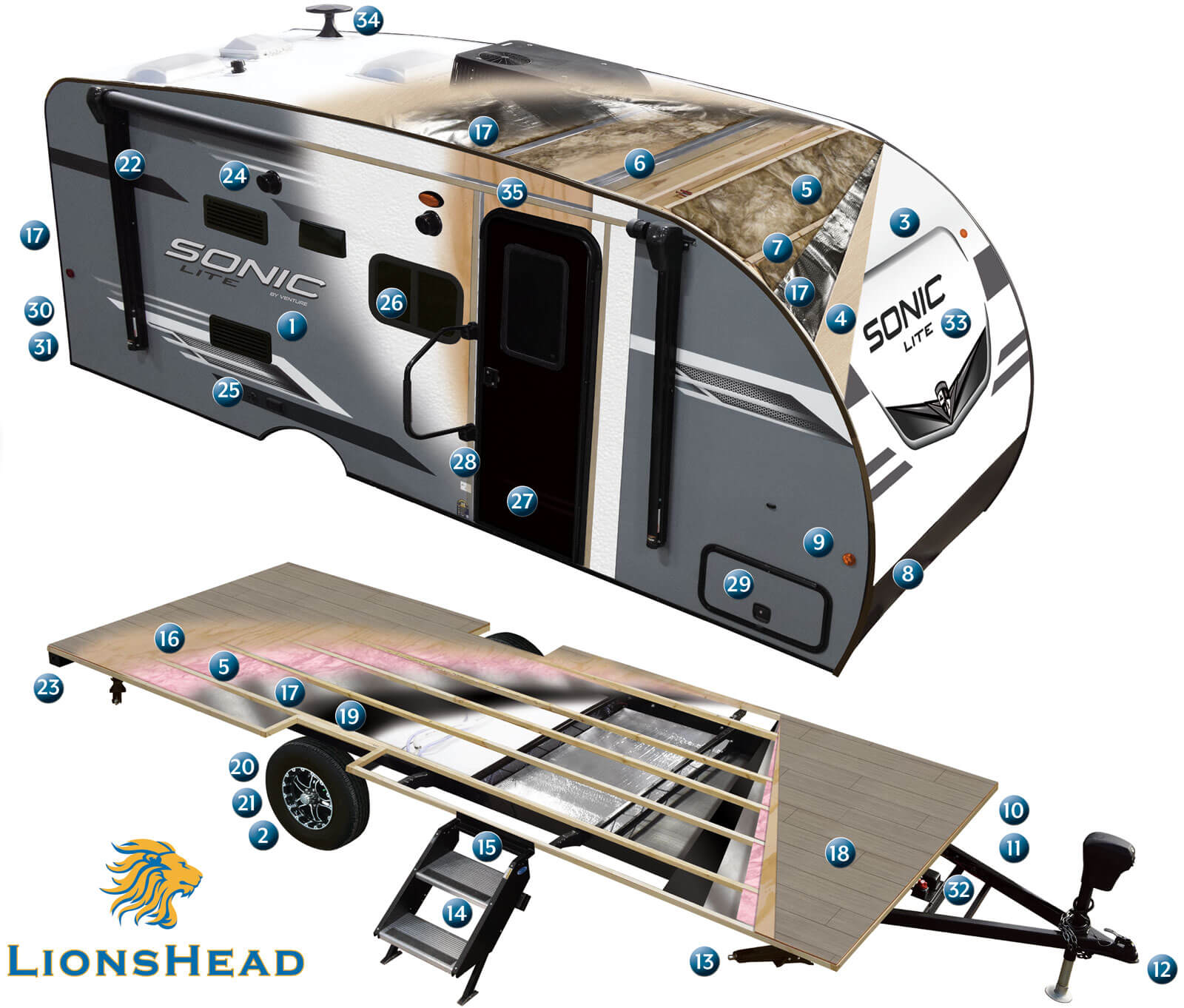

2023 Venture RV Sonic Lite Travel Trailer Cutaway

Cutaway

  1. Azdel RV composite panels are used in place of luan plywood, thus providing less weight, better insulating properties and sound deadening, water and moisture resistance, and no formaldehyde or other toxic chemicals used
  2. LionsHead 14" or 15" nitrogen-filled radial tires (VBF) – first year “No Excuses Warranty”, 2-year complimentary roadside assistance, 5-year warranty on radial ST tires and lifetime structural warranty on all wheels
  3. One-piece seamless fiberglass roof from front profile to rear bumper
  4. Construction board
  5. R-14* Residential fiberglass insulation
  6. Aluminum roof rafters
  7. Aerodynamic front profile 2" x 3" wood
  8. Diamond plate rock guard
  9. 4,000 high-gloss Aztec Grey fiberglass
  10. Easy-view LP tank cover
  11. (1) 20 LB LP tank (easy to exchange)
  12. NXG frame
  13. Secure Stance angle stabilizer jacks
  14. Flip-up aluminum Trek step
  15. Blue LED stairwell safety light
  16. 5/8" Tongue & groove plywood floor decking
  17. Radiant foil barrier
  18. Beauflor linoleum w/7-year limited warranty
  19. Darco moisture barrier
  20. Single axles w/self-adjusting brakes
  21. Aluminum rims (optional)
  22. Power awning w/LED lighting
  23. Tucked square bumper (sewer hose storage)
  24. (2) Exterior marine grade speakers
  25. 110V Outlet & TV hookups
  26. Tinted safety glass windows
  27. Friction-hinged radius entry door w/ScreenShot screen door
  28. Swing-away grab handle
  29. Slam latch baggage doors w/magnetic catches
  30. Prep for backup camera
  31. Prep for solar
  32. Battery disconnect switch
  33. Automotive aerodynamic front window
  34. Omni directional antenna w/Wi-Fi prep
  35. Aluminum-framed sidewalls

*Calculated R-Value

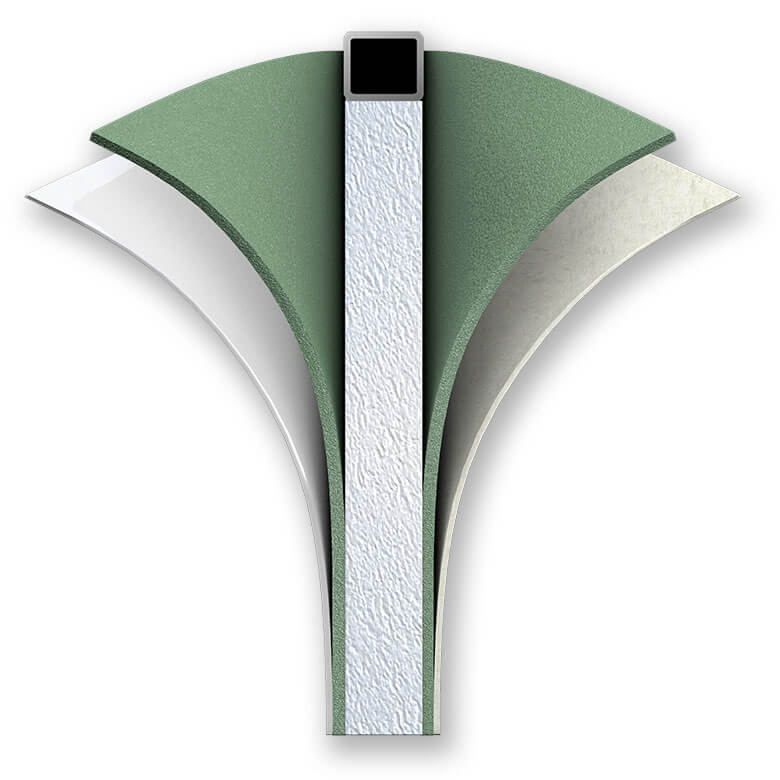

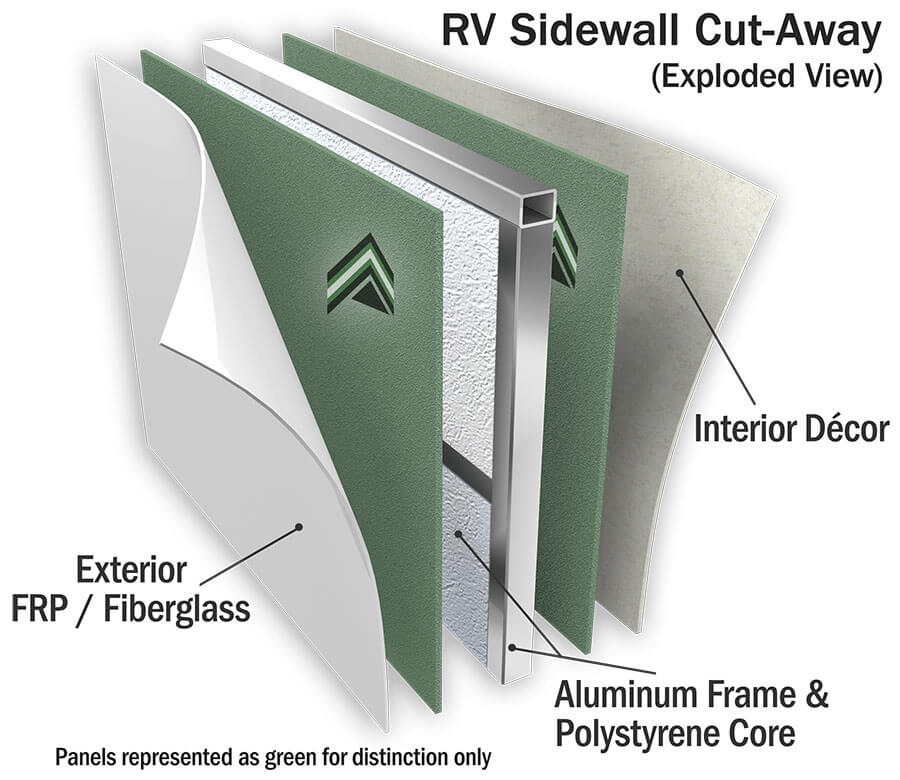

Azdel Composite Panels

Azdel RV Composite Panels Onboard
  • Azdel Composite Panels are 50 Percent Lighter than Wood

    50% Lighter than Wood

  • Azdel Composite Panels with No Mold, Mildew, Rotting or Warping

    No Mold, Mildew, Rotting or Warping

  • Azdel Composite Panels are Unaffected by Temperature and Humidity Changes

    Unaffected by Temperature & Humidity Changes

  • Azdel Composite Panels offer Superior Thermal Insulation

    Superior Thermal Insulation

  • Azdel Composite Panels offer Superior Sound Absorption

    Superior Sound Absorption

  • Azdel Composite Panels with Low VOCs and No Formaldehyde

    Low VOCs; No Formaldehyde

NXG Frame

  • NXG Frame Logo

    The NXG Frame is a superior quality, highly engineered frame that provides customers with a strong, lightweight, consistent foundation on which to build.

    nxg lightweight travel trailer frame
  • ELIMINATES:
    • Frame failures due to sub-standard steel
    • Construction issues caused by improperly placed components
    • Uneven main rails - varying camber
    • Corrosion caused by incomplete coverage due to painting of stacked frame assemblies
    • Paint failures caused by inadequately washed components
  • KEY FEATURES:
    • Constructed with HSLA - High Strength Low Alloy Prime Steel with specifically controlled properties
    • CNC controlled rail fabrication allows placement of components precisely where the manufacturer wants them
    • Manual welding is minimized. Common components are robotically welded for consistent quality
    • All fastened components are joined with Huck® fasteners. Huck fasteners provide consistent clamp load
    • CNC controlled camber
    • Designed with flush floor slideouts. Ensuring no rise between slideout and main floor for easier movement throughout the unit
