Sonic SN220VBH

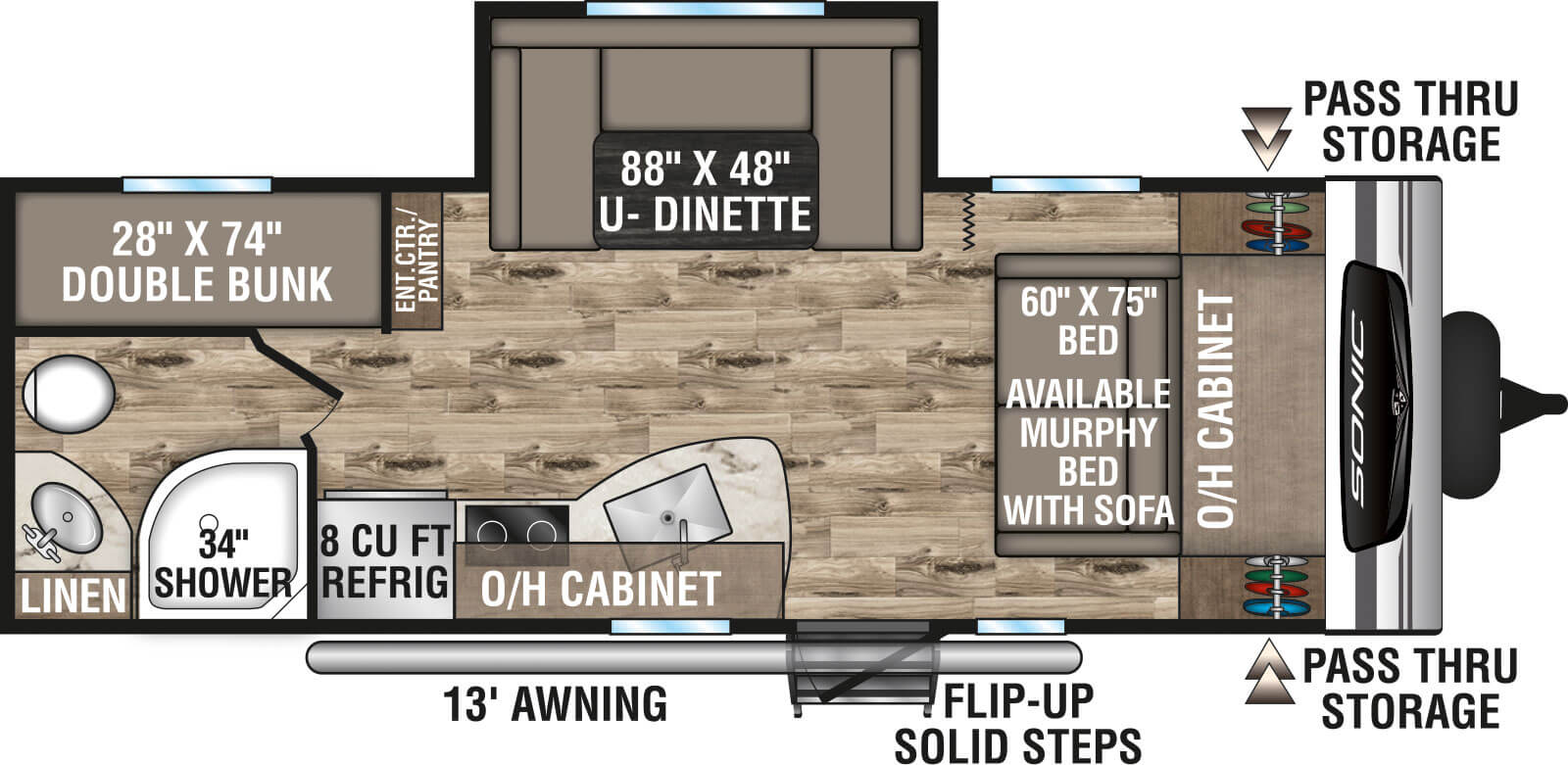

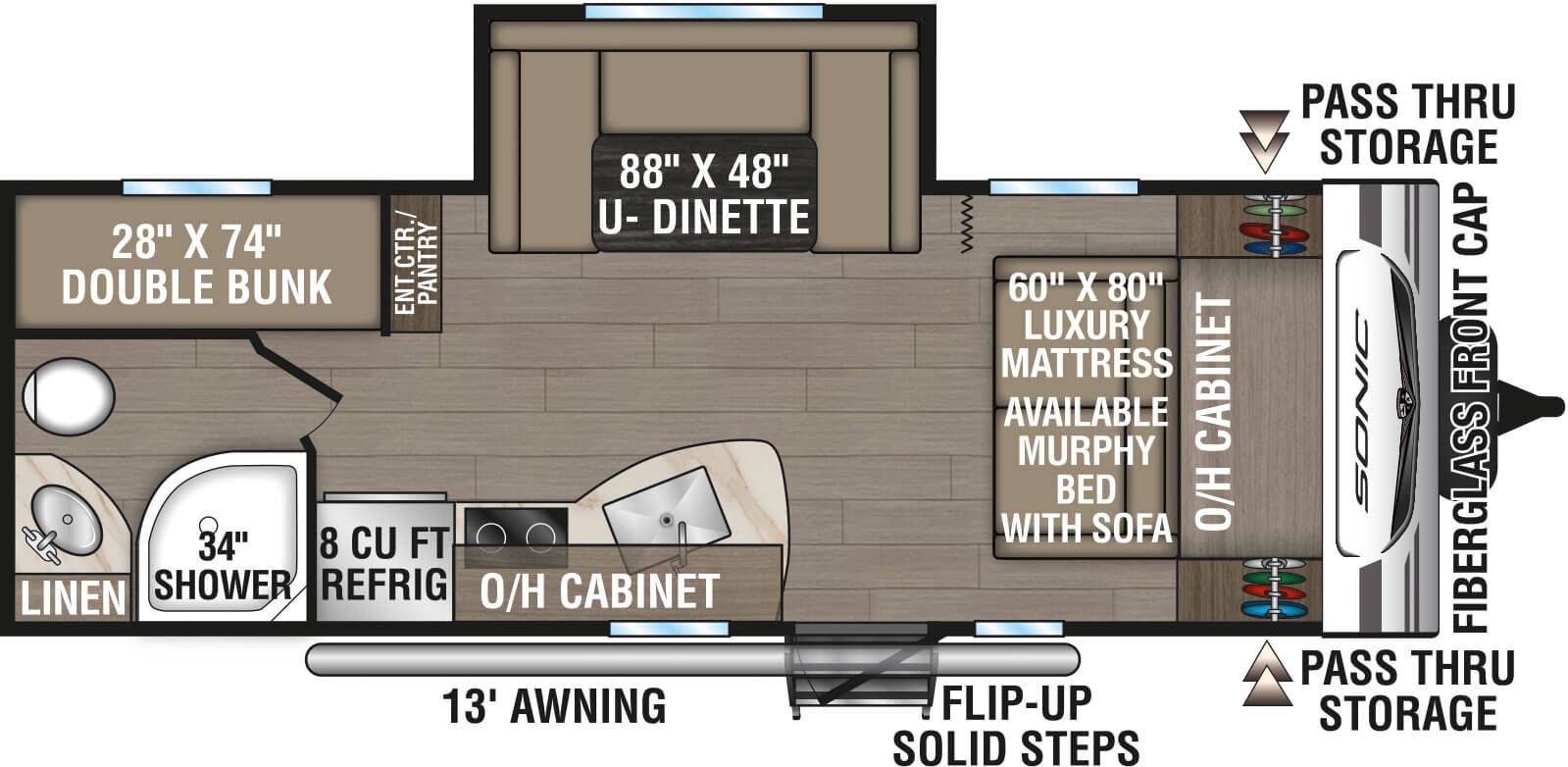

2020 Venture RV Sonic SN220VBH Travel Trailer Floorplan
UVW (Unloaded Vehicle Weight)* 4,560
Dry Hitch Weight* 500
Dry Axle Weight* 3,810
NCC (Net Carrying Capacity) 640
GVWR 5,200
Interior Height 82"
Exterior Height (with A/C) 10' 4"
Exterior Width 90"
Exterior Length 26' 5"
Refrigerator (Cubic Feet) 7
Water Heater Cap. (Gal. G/E w/DSI) 6
Fresh Water Cap. (Gal.) 38
Black Water Cap. (Gal.) 30
Gray Water Cap. (Gal.) 30
LP Gas Cap. (Lbs.) 40
Furnace BTUs (1,000s) 20
Tire Size 14"

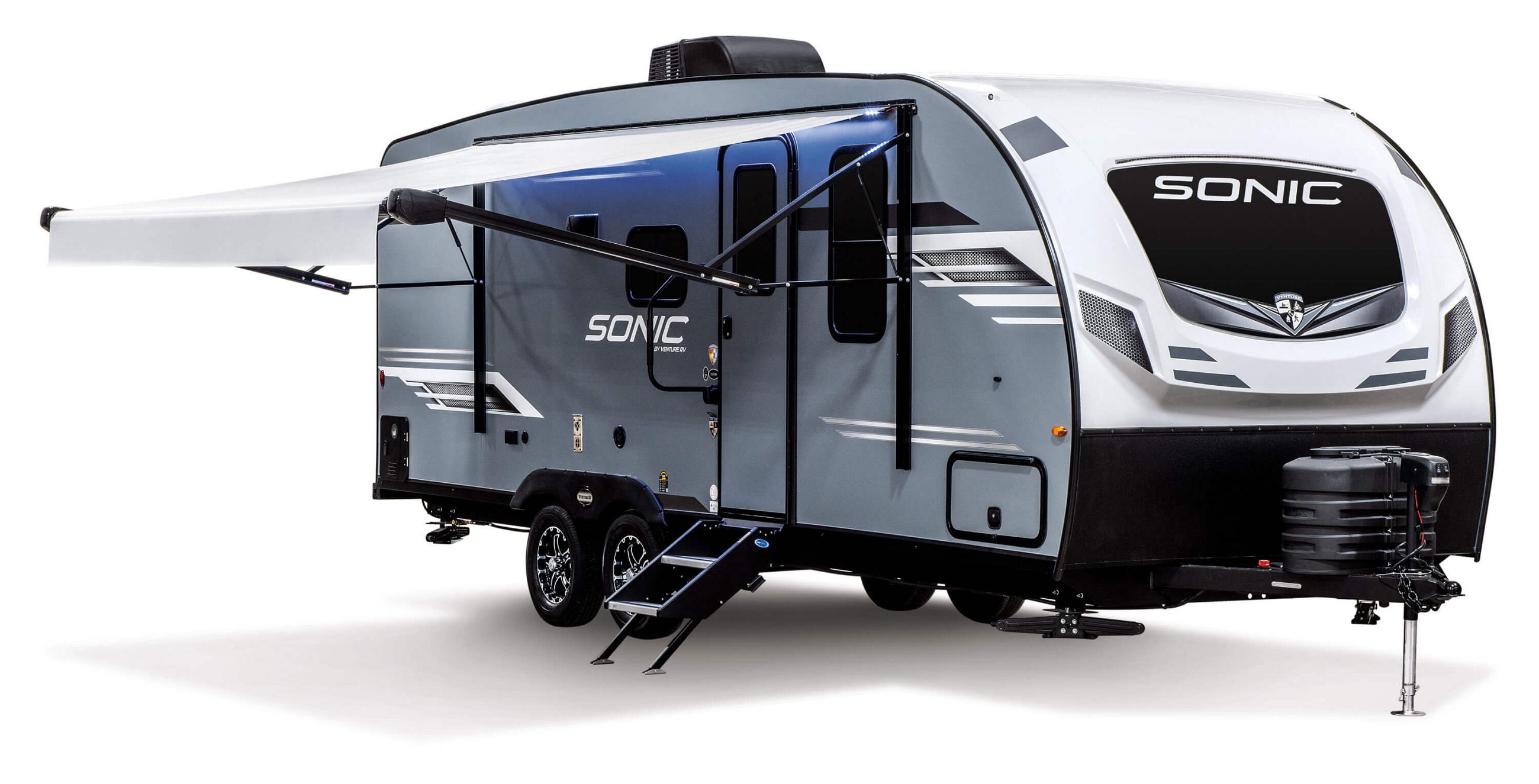

Awning 13'

*This weight reflects the rolling average unit weight for each model. Your trailer weight will vary according to optional equipment.
