2020 SportTrek Touring Construction

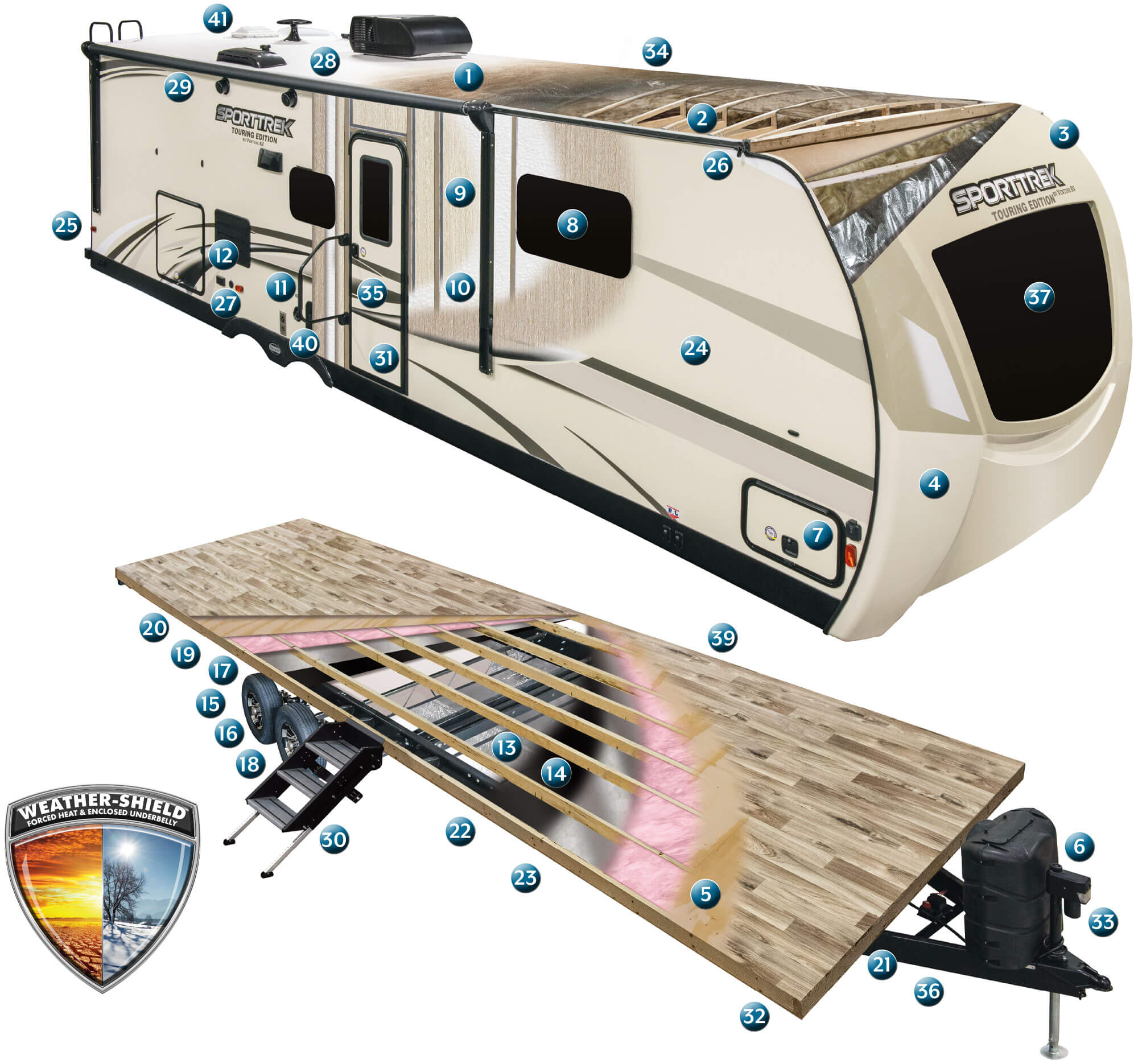

2020 Venture RV SportTrek Touring Edition Travel Trailer Construction
  1. 3/8" Walkable Roof Decking
  2. 4 1/2" Truss Rafters (16" O.C.)
  3. 12V LED Lights
  4. Painted Fiberglass Aerodynamic Front Cap w/Integrated LED Lighting
  5. 5/8" Tongue & Groove Plywood Decking
  6. (2) 30# LP Tanks w/Flip-Up Access Lid
  7. Extra-Large Slam Latch Radius Baggage Doors w/Magnetic Catch
  8. Frameless Tinted Safety Glass Windows
  9. Luan Decorative Wallboard
  10. Expanded R-7 Polystyrene Insulation
  11. Large Assist Grab Handle
  12. 110V Outlet
  13. Darco® Corrugated Moisture Barrier
  14. Forced Air Heated, Enclosed & Insulated Underbelly
  15. 15" Nitrogen Filled Radial Tires
  16. High Polished Aluminum Rims
  17. Auto-Adjust Brakes
  18. E-Z Lube® Axles
  19. Heavy Duty Leaf Springs
  20. Rack & Pinion Electric Slide w/Manual Override & Box Tube Slideout Ram
  21. BAL Huck Bolted Frame
  22. 2" x 3" Floor Joists (16" O.C.)
  23. Triple-Sealed Slideouts
  24. Ivory-Infused Fiberglass Exterior
  25. Fold-Up Bike Rack/Cargo Tray Integrated Into the Frame
  26. Extra-Long Drip Spouts
  27. Satellite & Cable Hookups
  28. PVC Seamless 1-Piece Roofing Material w/Limited 15 Year Warranty
  29. Power Awning w/LED Light
  30. Fold-Up Solid Trek Step
  31. Screen Shot Spring-Loaded Screen Door
  32. Independent Power Stabilizer Jacks (4)
  33. Power Tongue Jack w/Light
  34. Guttering above Slideout
  35. Friction Hinge Entry Door
  36. Easy Access Battery Disconnect
  37. Tinted Automotive Front Windshield
  38. Black Marine-Grade Lighted Exterior Speakers
  39. Enclosed Gate Valves
  40. Venture RV Bottle Opener/Doggie Tiedown
  41. King WiFi Prep.

NXG Frame

  • NXG Frame Logo

    The NXG Frame is a superior quality, highly engineered frame that provides customers with a strong, lightweight, consistent foundation on which to build.

    nxg lightweight travel trailer frame
    • Frame failures due to sub-standard steel
    • Construction issues caused by improperly placed components
    • Uneven main rails - varying camber
    • Corrosion caused by incomplete coverage due to painting of stacked frame assemblies
    • Paint failures caused by inadequately washed components
    • Constructed with HSLA - High Strength Low Alloy Prime Steel with specifically controlled properties
    • Designed to accommodate both fifth wheel and travel trailer configurations
    • CNC controlled rail fabrication allows placement of components precisely where the manufacturer wants them
    • Manual welding is minimized. Common components are robotically welded for consistent quality
    • All fastened components are joined with Huck® fasteners. Huck fasteners provide consistent clamp load
    • CNC controlled camber

NXG Slide

  • NXG Slide Logo

    BAL has set the new standard in slide-out technology with the award winning ‘NXG SLIDE’ rack drive slide-out. The NXG SLIDE system provides an unmatched level of durability and precision that was not available in older generations of slide-out mechanisms. Due to the systems rigidity and tightness, a user should experience years of trouble-free performance. All components of the NXG SLIDE mechanism are individually coated with highly effective corrosion-resistant e-coat or plating for extended life of the slide-out drive. Required maintenance is limited to periodic cleaning and lubrication of the main drive arms of the system. For additional information regarding the NXG SLIDE or other BAL products, please visit

  • nxg travel trailer slideout system secure connections
    nxg travel trailer easy adjustment
    nxg travel trailer arched design
